In order to receive readings both via Pulsa telemetry and the digital display of a Data Online Unit, a Pulsa Mediator Board must be utilized.
You Will Need:
- Data Online 5 Volt Unit
- Pulsa Link 0-5V (Not Passive)
- Pulsa Mediator Board
- Pulsa Pigtail Connector
Remove the Data Online Faceplate
Remove the Data Online Faceplate to reveal the device's faceplate/circuit board.
Remove connections to the Data Online Faceplate
Remove the DP Sensor connection (Labeled DT2) and the Battery (BATT) or AC Power connection (Power1) from the circuit board.
Insert the link connector end into the Data Online Box
Connect the Mediator Board to the Pulsa Link
On the mediator board, locate the wire group labeled 'Pulsa Link 5V'. Use a small screwdriver or flathead to open up and clamp down to connect the wires from the pigtail connector here. Use the insulation on the wires of the mediator board as a reference for where to connect the pigtail connectors.
Connect the Mediator Board to the Data Onlinle DP Sensor
Locate the 'Data Online 5V' wire group on the mediator board and connect the male connector to the female connector of the DP Sensor.
Connect the Mediator Board to the Data Online Circuit Board

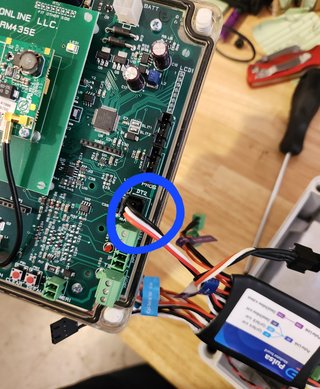

Insert the female connector into the male 'DT2' connector on the Data Online circuit board.
Connect the Power to the Data Online Unit
Re-attach either the battery or AC power connection to the Data Online box to power the unit.
*Note: Only Connect one source of power. Leave the other power source's connector un-attached.
Close the Data Online Box
Close the Data Online unit with the Pulsa mediator board and wires inside. Connect the unit to AC power if this is the chosen method of power.
Attach Pulsa Link to the side of the Data Online unit.
Use double-sided tape or another method to attach the link to the side of the unit. Do NOT leave the link hanging without securing it to anything.
Set Up Pulsa Link
Ensure that the Data Online Unit is on and set up the Pulsa Link on the dashboard to confirm measures.
SeePulsa Link Setup and Updating Link Measure Delay Settings.
